SurveyCam™

What you can't see, we can!

Introducing SurveyCam™, the world's first all-in-one survey camera, extending up to 45ft when used with the SkyPole. High spec cameras for all photographic and video needs.

SurveyCam™ can be used for a wide range of different projects whether there's a project for domestic properties or for a business. SurveyCam will adapt to all types of situations.

Features:

• Front LED Lights to improve photos
• Zoom functionality
• External Antenna to improve signal strength
• Sun Shade to block out annoying glare
• Protective Jacket to prevent damage in the field
• Micro SD Card storage
• HD Picture Quality

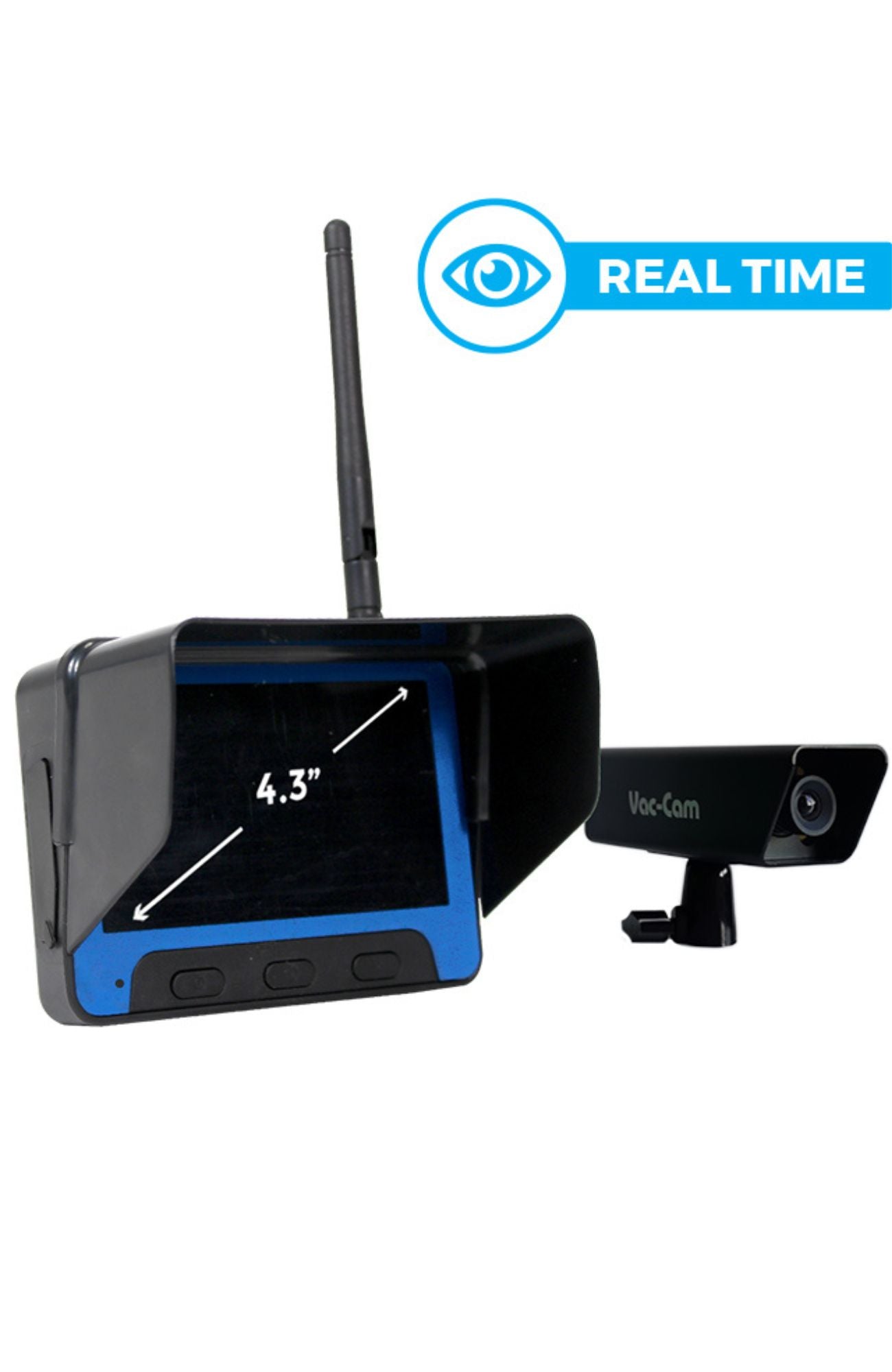

When combined with our state-of-the-art, carbon fiber telescoping SkyPole this system has up to a 44 ft reach and a collapsed pole height of only 6 ft.

White feature LED Lights

External Antenna

Sun Shade and Protective Jacket

Video

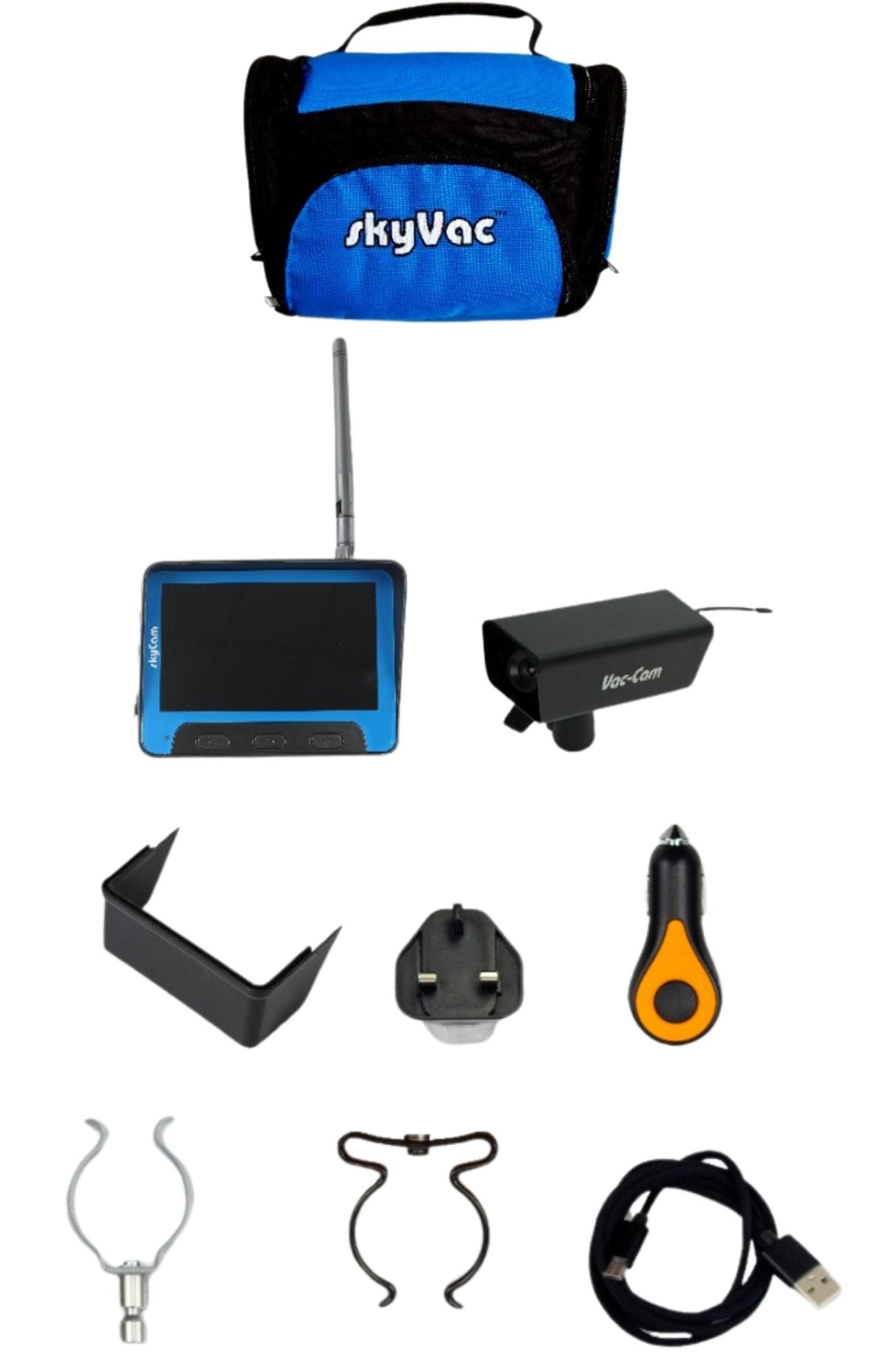

Included Items

Protective Camera case

• 13"x 11" x 5"
• Water resistant and lockable
• Egg crate foam to lid / Cut to shape foam sections in the base.

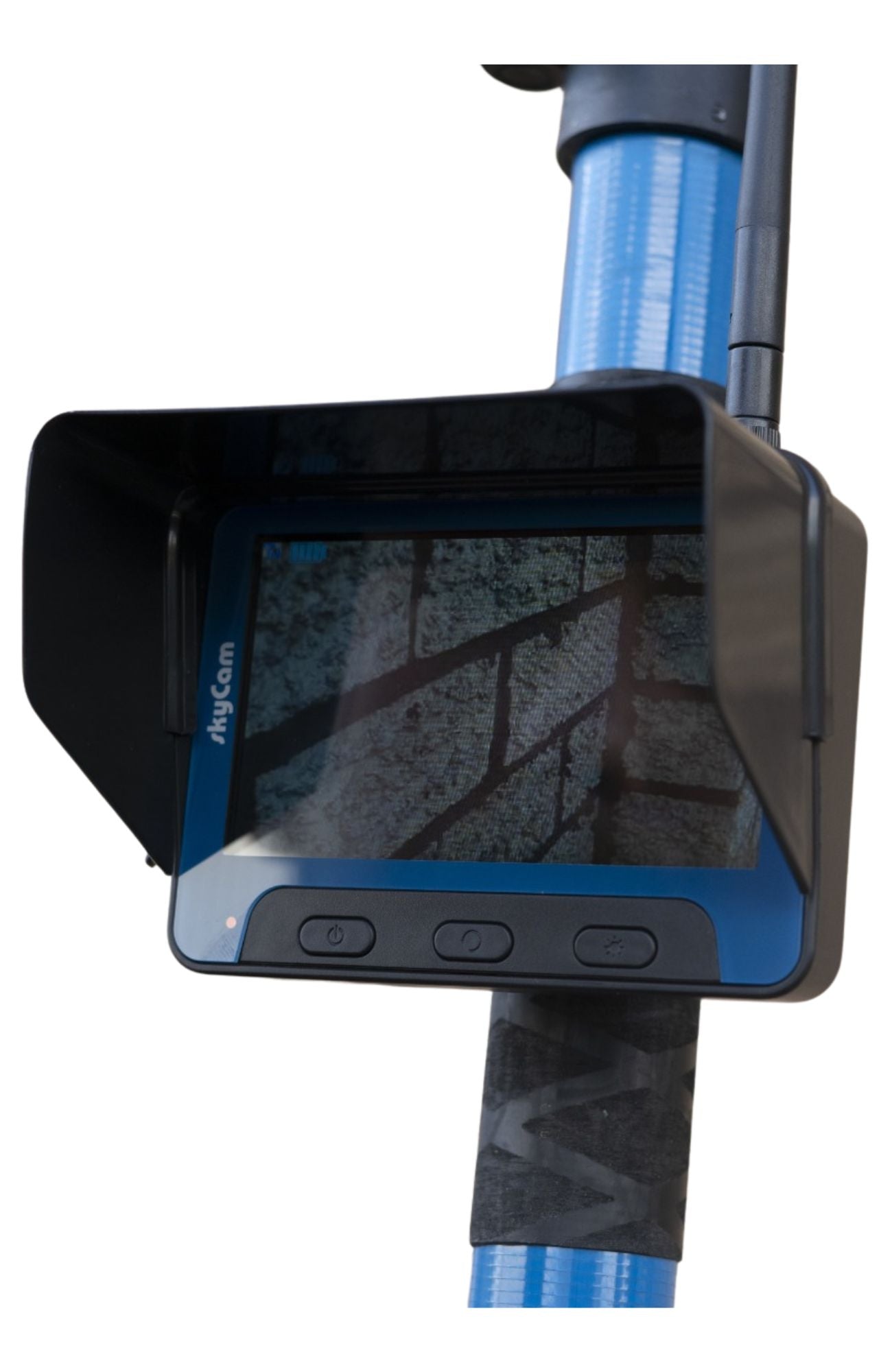

5 Inch HD Monitor

• Antenna for Monitor
• 1 x 8GB TF card
• Sunshade for Monitor.
• Multi-Functional TF Card Reader
• 1 x wide base black bracket (monitor)
• Telescopic Hand Grip
• Mount clip

Camera

• Camera Bracket
• Plug Adaptor
• In Car Adaptor
• 2 x USB  Charging Cables
• Mount Clip

Specifications

 SurveyCam® Monitor Specifications:

• Screen Size: 5 Inch TFT LCD
• Display Resolution: 1280x720
• Unobstructed Receive Range: 328 feet
• Zoom: 　 3 levels
• Modulation Mode: GFSK
• Power Supply: 5V (VDC)
• Battery (integrated): 2500mAh
• Charge Time: 3 hours
• Working Time (full Charge): 3 Hours
• Memory: T-Flash Card
• Max.Memory Size: 64GB
• Picture Format: 1 x JPEG
• Video Format: 1280 x 720HD - MP4
• Picture/Video Resolution: 720 Pixels
• Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 6" x 1" x 4"
• Weight: 9 0z
• Weather Proof Rating: IP64 for light showers

SurveyCam® Camera Specifications:

• Image Sensor: 1/4 Inch JX-H62
• Effective Pixels: 1280x720
• View Angle: 45°
• Transmission Frequency: Encrypted 2400~2483 MHz
• Modulation Mode:　 GFSK
• Unobstructed Effective Range: 328 feet
• white LED light range: 6.5 feet
• Power Supply: 5V DVC
• Battery (integrated): 1200mAh
• Charge Time: 2 Hours
• Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
• Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
• Dimensions: 2" x 40D x40H mm
• Weight: 2 OZ
• Weather Proof Rating: IP64 for light showers

SurveyCam® Output:

• Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files.   15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
• Images: 1MP


SurveyCam® Photograpic Case:

• Dimensions: 13"x 11" x 5"
• Watertight seal around lid
• Foam protected storage compartments
• Secure double throw latches
• Soft grip handle
• Holes on either edge for padlocking
• Injection Molded high quality Polypropylene
